RW Mini IoT Gateway
Our first Raspberry Pi powered IoT gateway.

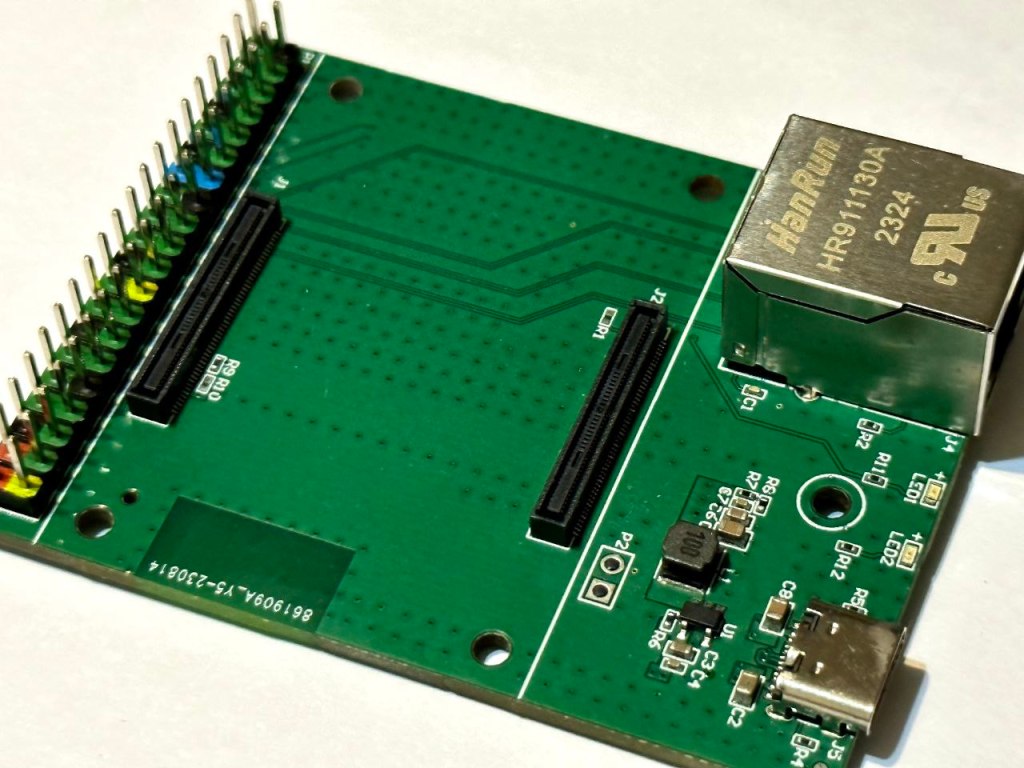

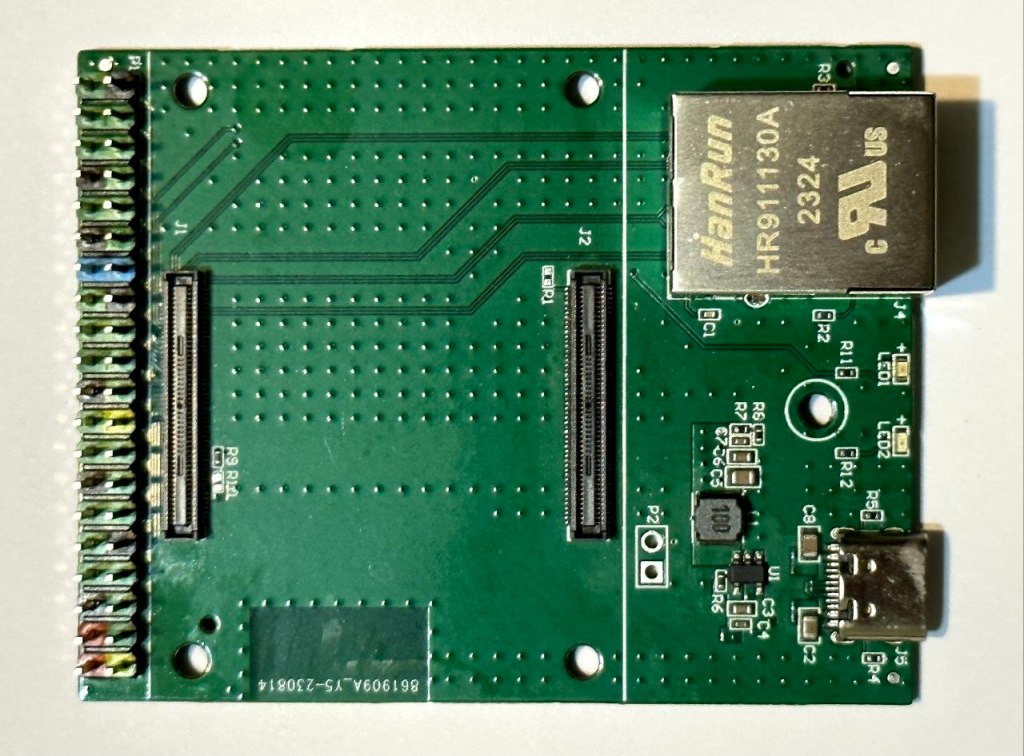

The Gateway is equipped with Gigabit Ethernet, USB-C powered, and is expandable with Raspberry Pi standard HAT on the 40-pin GPIO. Ideal for fast, multi-gateway deployment.
It allows users to flash images for Raspberry Pi directly to the on board storage for industrial and reliability-focused use case.
Specification

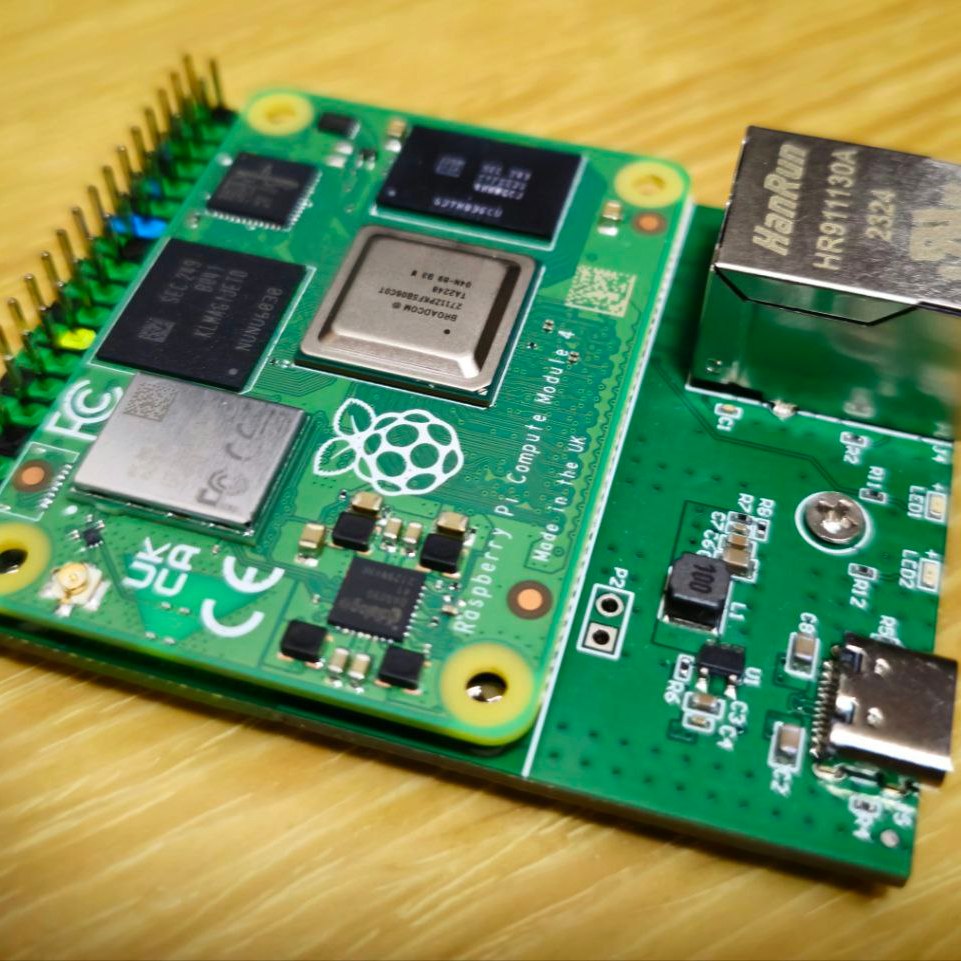

- Compatibility: Raspberry Pi Compute Module 4
- Connector: DF40HC(3.0)-100DS-0.4V(51) x2
- Dimension: 55 x 70mm
- RJ45 connector with Gigabit Ethernet

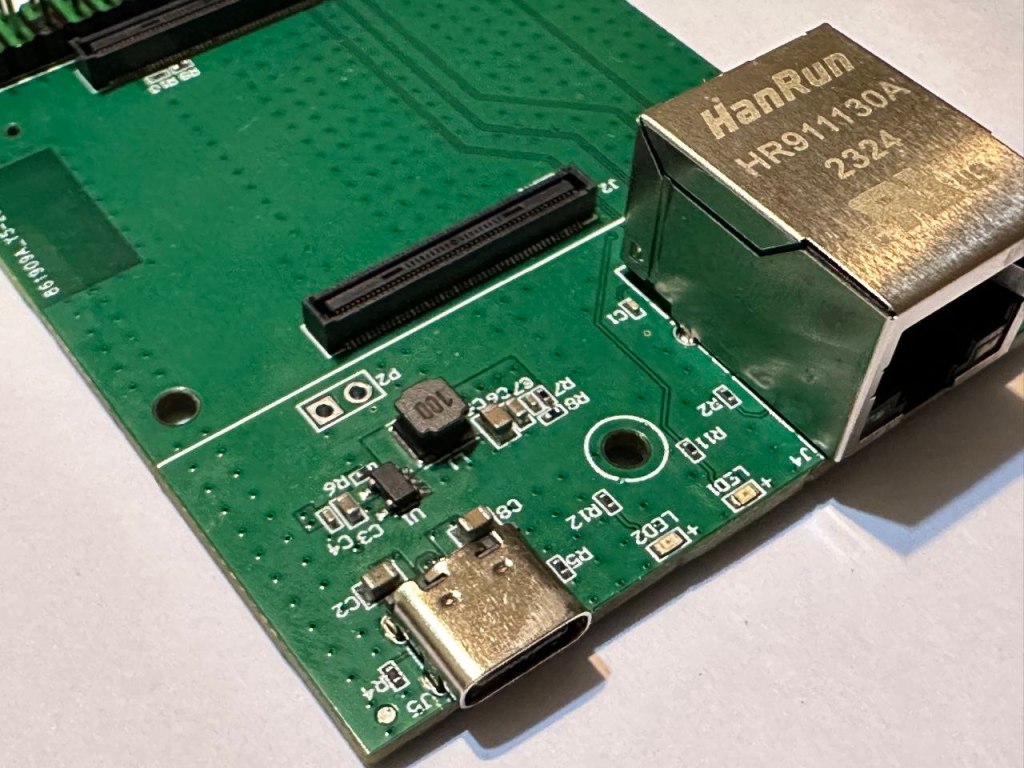

- USB-C for power and flashing on-board eMMC
- 40-pin GPIO, Raspberry Pi standard
- Other specifications, please refer to Raspberry Pi Official Documentation and the CM4 variation chosen
Demonstration
To be Released
Procedure to flash the Raspberry Pi eMMC directly on the RW IoT Gateway
- Download rpiboot.exe from Raspberry Pi Foundation

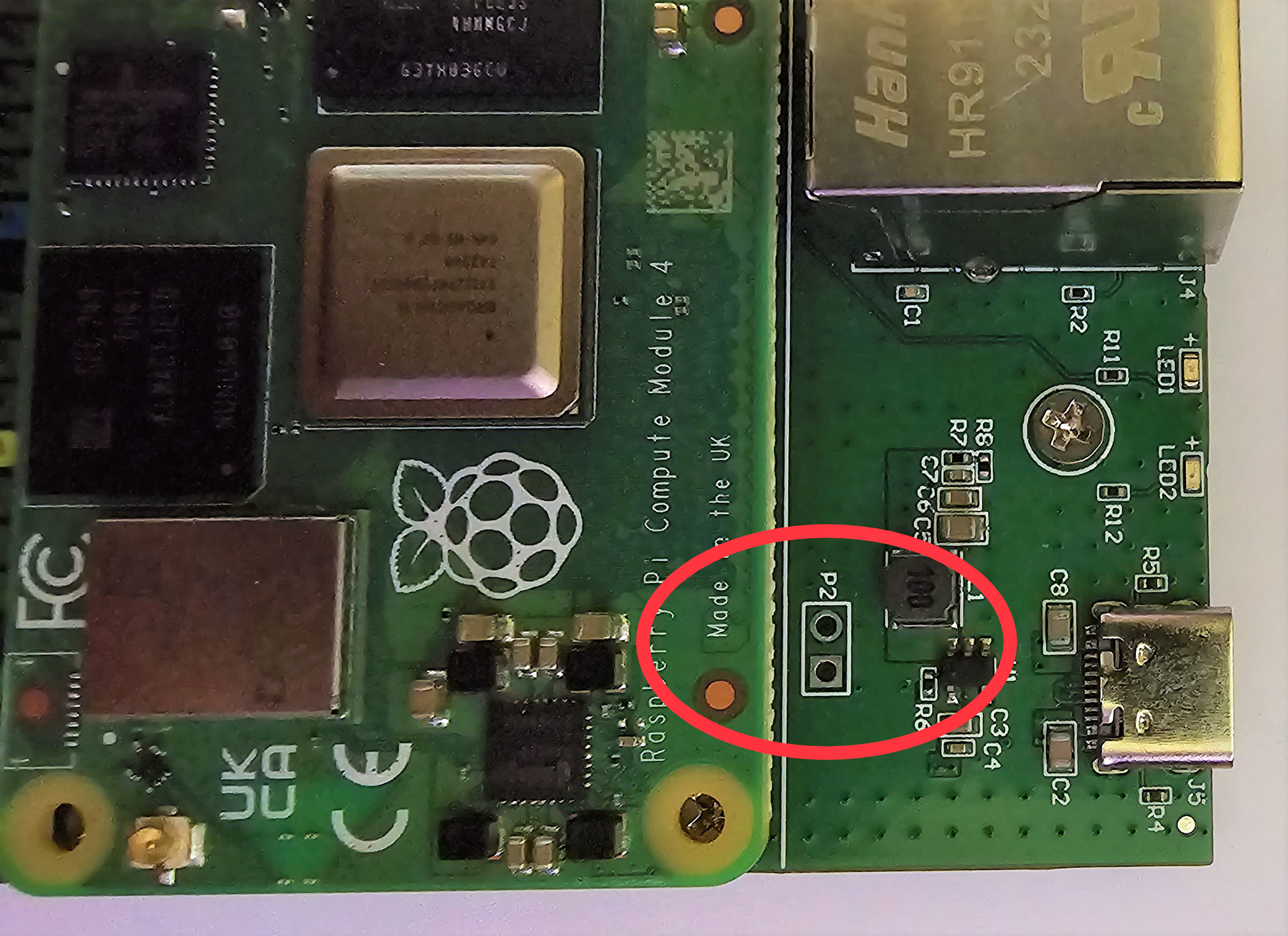

- Short P2 pins with a tweezer or jumper cable (or whatever you can), connect the USB-C to PC. Make sure your cable has the USB data pair.

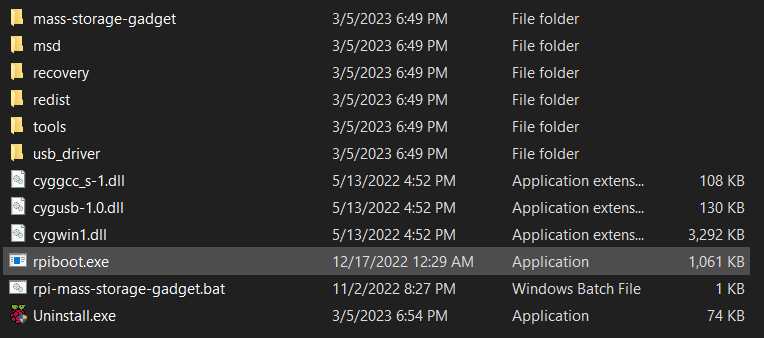

- Launch rpiboot.exe from the installed directory
- The eMMC should now be mounted as USB flash drive. Flash the dedicated image using Raspberry Pi Imager or Win32DiskImager.
Reference:
- Raspberry Pi Documentation
